Rubber gaskets to lift up the main frame

To reduce some vibrations that may cause metallic noise, rubber gaskets are used under the main frame. The rubber gasket was a 150x200x30mm plate which was sawed with desktop band saw.

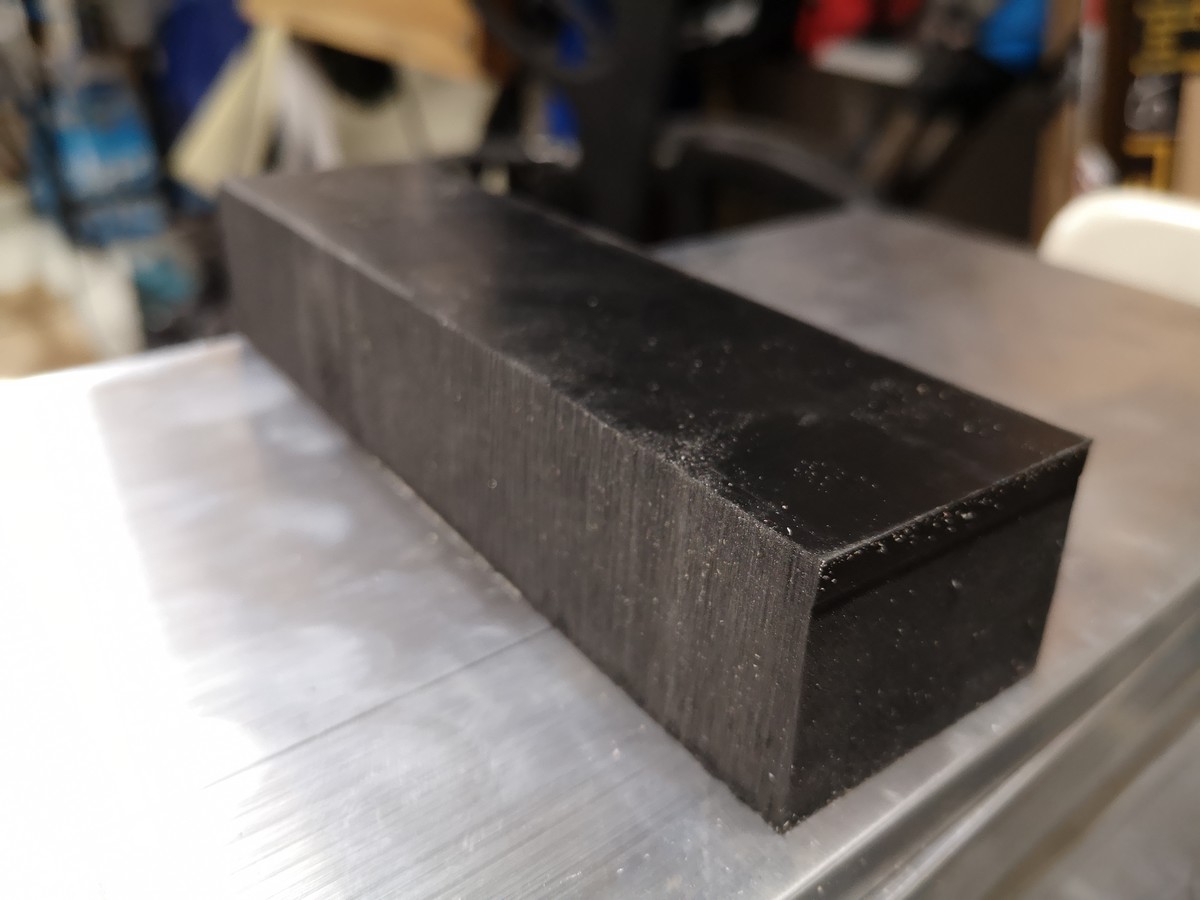

The rubber plate was sawn in around 40x75mm pieces. Plan is to install them at least 3 per Y Axis. In this way the bottom aluminum frame profiles will get < 10mm up from the surface which makes it possible to adjust them in a straight angle since the table is not straight planar surface (As expected for a second hand table…)

Some brackets needs to possibly be printed so that the rubber gaskets can be fixed to the frame. Also the spacing between the v-slot aluminum frames and the table need to be planned since it has not been thought of yet…
